2. Short-circuit current breaking phenomena
Attaching
Previous Next Contents

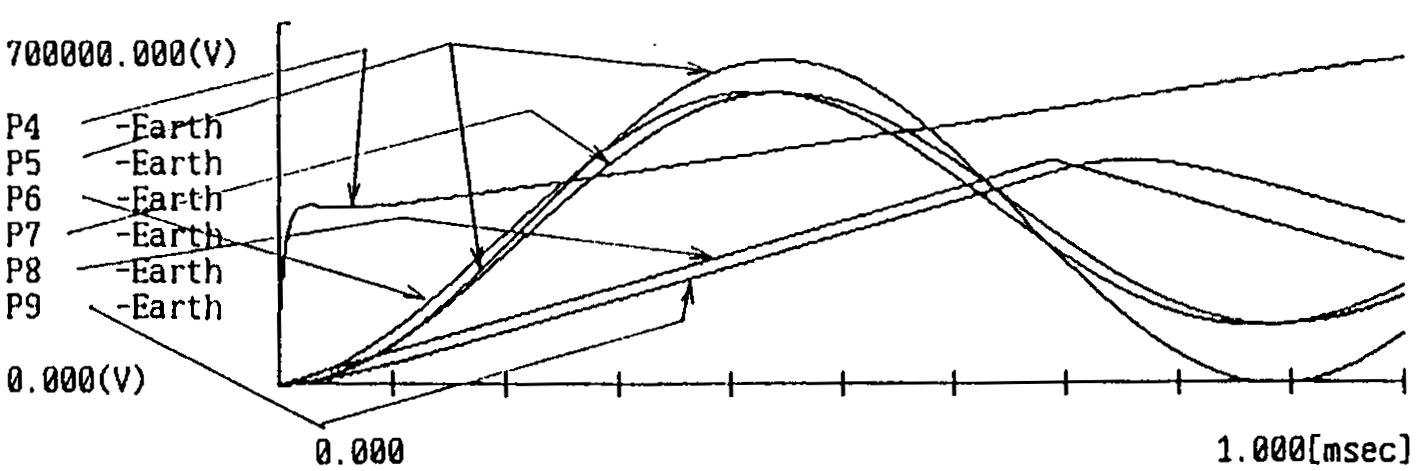

  • Current injections to various circuit elements P-Nos corresponds to case Nos in Table 2.1
    ATP Data Source

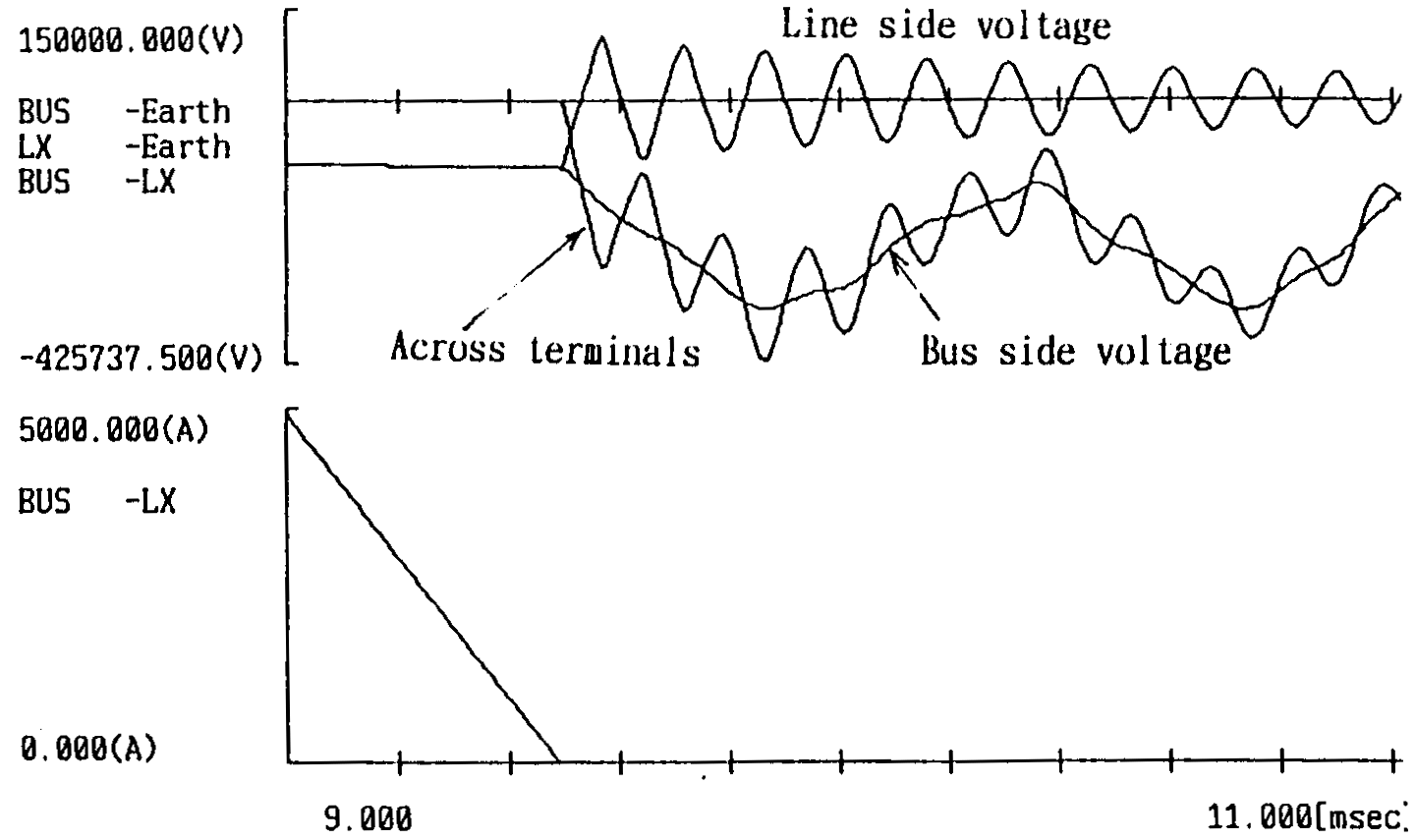

  • Line fault breaking (F3 in Fig. 2.3)
    ATP Data Source

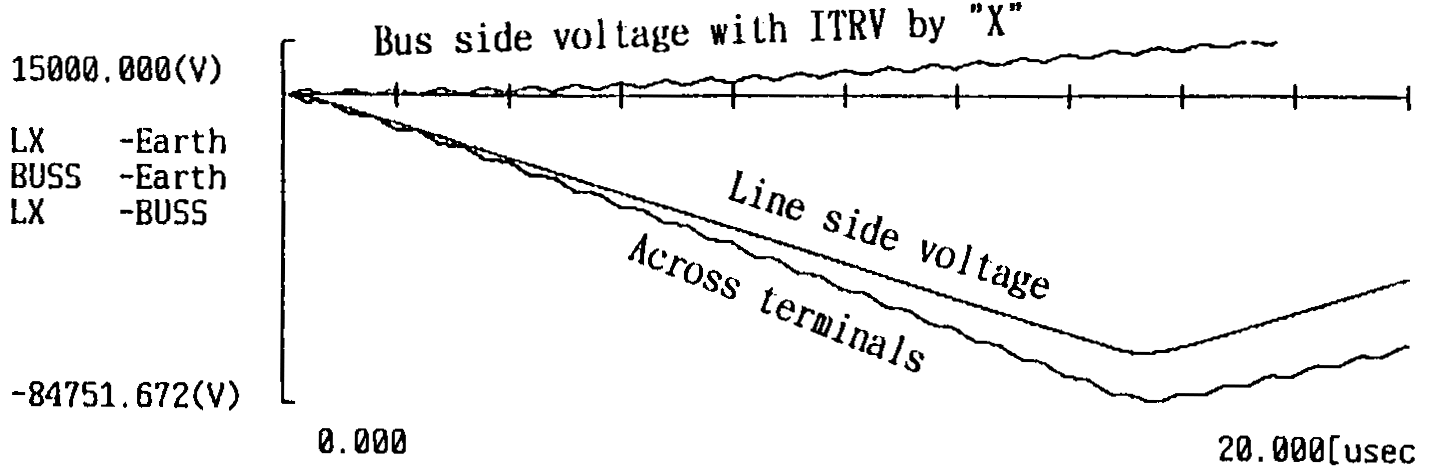

  • Line fault breaking (F2 in Fig. 2.3 with "X"---ITRV)
    ATP Data Source

    • This page is based on Prof. E.Haginomori's lectures in Tokyo Institute of Technology, and edited by Japanese ATP User Group. Copyright (C) Eiichi Haginomori and Japanese ATP User Group.
