6. Power flows and voltage stabilities in power systems
Appendix
Some examples of voltage stability calculations

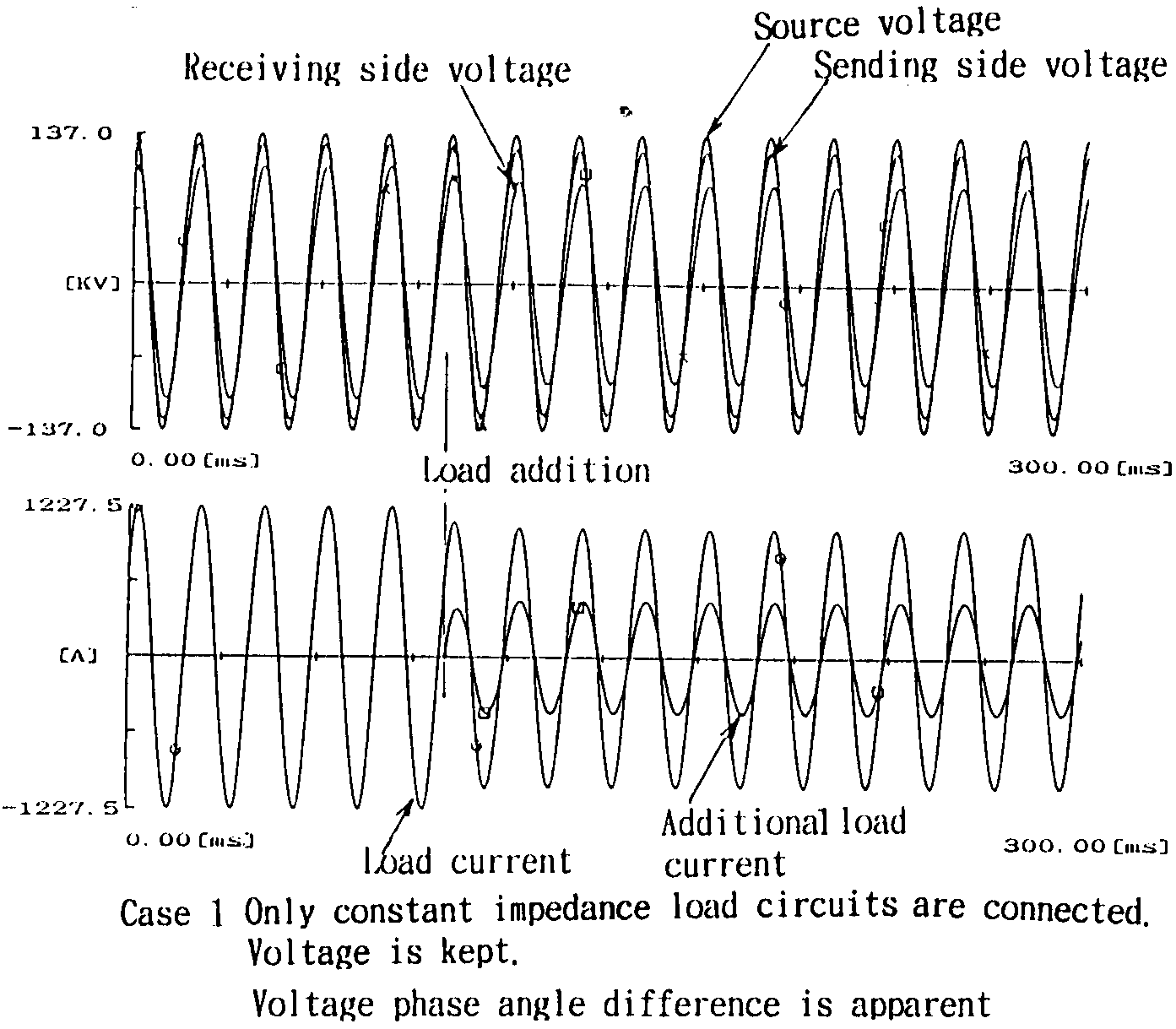

Case 1: Only constant impedance load circuits are connected.
Voltage is kept.
Voltage phase angle difference is aparent.
ATP Data Source

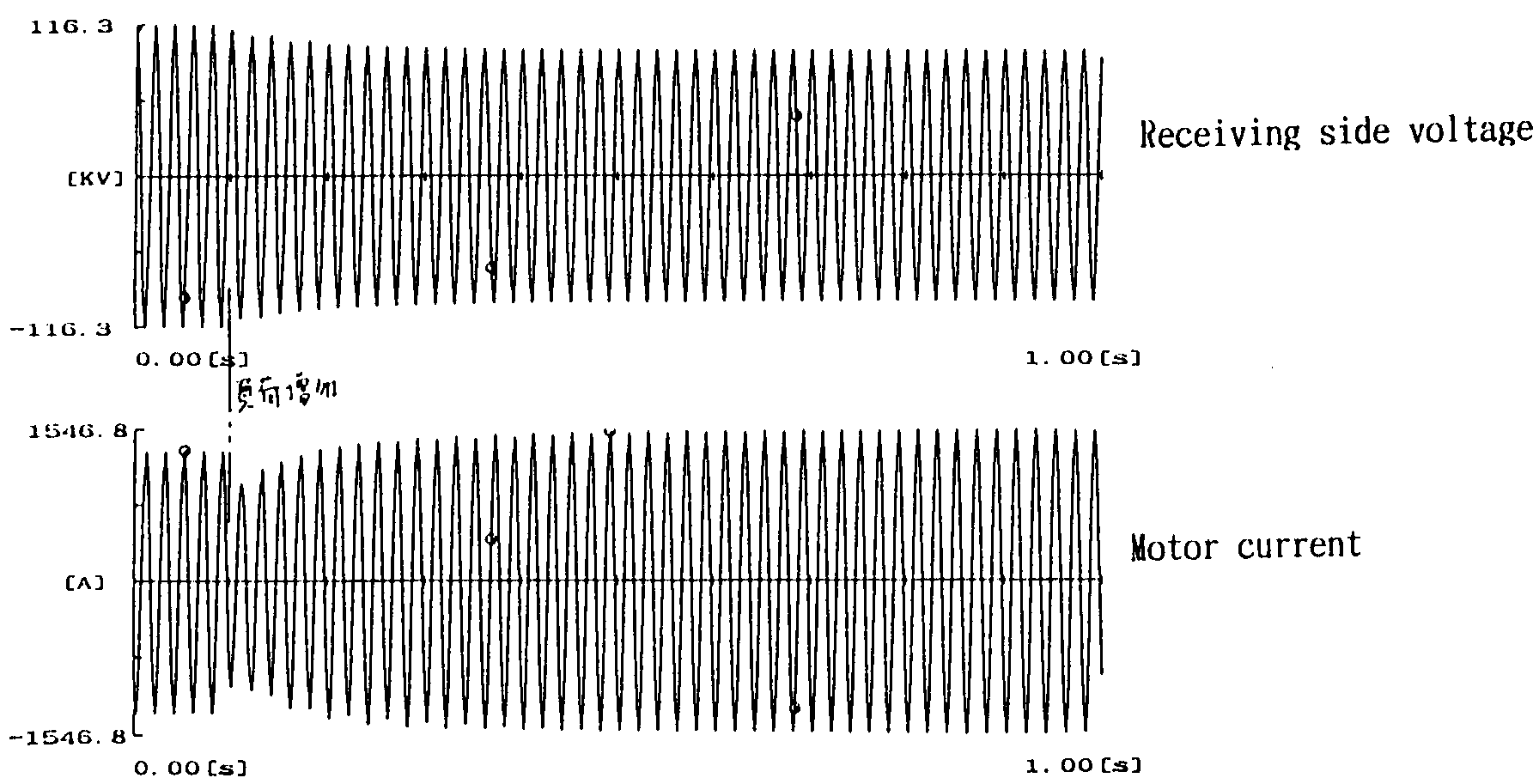

Case 2: 60% of the load is induction motor.
Voltage is collapsed.
ATP Data Source
Case 3: Like case 2 but shunt capacitor is added.
Voltage is kept.
ATP Data Source
Case 4: Like case 2 but with series capacitor
50% of line reactance is compensated.
Voltage is kept.
ATP Data Source
This page is based on Prof. E.Haginomori's lectures
in Tokyo Institute of Technology, and edited by Japanese ATP User Group.
Copyright (C) Eiichi Haginomori and Japanese ATP User Group.
